5.5. Web Service instance

发布时间 : 2025-10-25 13:34:15 UTC

Page Views: 10 views

Any application can have Web Service components.

The creation of Web Service is independent of the type of programming language.

In this section, we will introduce you to using PHP’s SOAP extension to create Web Service.

SOAP has two modes of operation, NO-WSDL and WSDL.

  • NO-WSDL mode: use parameters to pass the information to be used.

  • WSDL mode: use the WSDL file name as a parameter and extract the informationneeded for the service from the WSDL.

5.5.1. An example: PHP Web Service

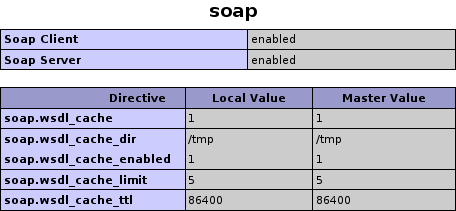

Before starting the instance, we need to determine whether PHP has the SOAP extension installed. Looking at phpinfo, the following message appears to indicate that the SOAP extension has been installed:


In this example, we will use PHP SOAP to create a simple Web Service.

Server side the Server.php file code is as follows:

"http://localhost/soap/Server.php","uri"=>"Server.php")); // Export all functions in the SiteInfo class $s->setClass("SiteInfo"); // Process a SOAP request, call necessary functions, and send back a response. $s->handle(); ?>

Client the Client.php file code is as follows:

"http://localhost/soap/Server.php",'uri'=>'Server.php')); // Call function $result1 = $soap->getName(); $result2 = $soap->__soapCall("getUrl",array()); echo $result1."
"; echo $result2; } catch(SoapFault $e){ echo $e->getMessage(); }catch(Exception $e){ echo $e->getMessage(); }

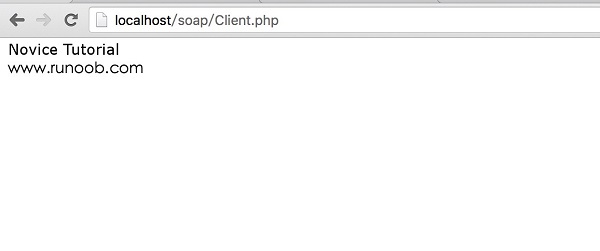

At this point, we visit http://localhost/soap/Client.php and the output is as follows:
