7.28. Bootstrap5 sidebar navigation (Offcanvas)

发布时间 ： 2025-10-25 13:35:29 UTC

Page Views: 15 views

The Bootstrap5 sidebar is similar to the modal box and is commonly used in mobile devices.

7.28.1. Create sliding navigation

We can use JavaScript to set whether the .offcanvas add after the class``.show`` class to control the display and hiding of the sidebar:

  • .offcanvas Hide content (default)

  • .offcanvas.show display content

You can use a-linked href Property or button element usage data-bs-target property to set the sidebar. Both cases require the use of data-bs-toggle="offcanvas" .

Create a sliding navigation example as follows:

Example

<a class="btn btn-primary" data-bs-toggle="offcanvas" href="#offcanvasExample" role="button" aria-controls="offcanvasExample">
  Use the link's href attribute
a>
<button class="btn btn-primary" type="button" data-bs-toggle="offcanvas" data-bs-target="#offcanvasExample" aria-controls="offcanvasExample">
  Used in buttons data-bs-target
button>

<div class="offcanvas offcanvas-start" tabindex="-1" id="offcanvasExample" aria-labelledby="offcanvasExampleLabel">
  <div class="offcanvas-header">
    <h5 class="offcanvas-title" id="offcanvasExampleLabel">sidebarh5>
    <button type="button" class="btn-close text-reset" data-bs-dismiss="offcanvas" aria-label="Close">button>
  div>
  <div class="offcanvas-body">
    <div>
      Some text as placeholder. In real life you can have the elements you have chosen. Like, text, images, lists, etc.
    div>
    <div class="dropdown mt-3">
      <button class="btn btn-secondary dropdown-toggle" type="button" id="dropdownMenuButton" data-bs-toggle="dropdown">
        Dropdown button
      button>
      <ul class="dropdown-menu" aria-labelledby="dropdownMenuButton">
        <li><a class="dropdown-item" href="#">Actiona>li>
        <li><a class="dropdown-item" href="#">Another actiona>li>
        <li><a class="dropdown-item" href="#">Something else herea>li>
      ul>
    div>
  div>
div>


  7.28.2.  The direction of the sidebar

 You can control the orientation of the sidebar through the following four classes:


  •
       .offcanvas-start   is shown on the left, as in the example above.

    •
  •
       .offcanvas-end   Display on the right

    •
  •
       .offcanvas-top   Display at the top

    •
  •
       .offcanvas-bottom   Display at the bottom

    •


 Example



<button class="btn btn-primary" type="button" data-bs-toggle="offcanvas" data-bs-target="#offcanvasTop" aria-controls="offcanvasTop">Top navigation barbutton>

<div class="offcanvas offcanvas-top" tabindex="-1" id="offcanvasTop" aria-labelledby="offcanvasTopLabel">
  <div class="offcanvas-header">
    <h5 id="offcanvasTopLabel">Display in the top navigation barh5>
    <button type="button" class="btn-close text-reset" data-bs-dismiss="offcanvas" aria-label="Close">button>
  div>
  <div class="offcanvas-body">
    ...
  div>
div>


 Example



<button class="btn btn-primary" type="button" data-bs-toggle="offcanvas" data-bs-target="#offcanvasRight" aria-controls="offcanvasRight">Right sidebarbutton>

<div class="offcanvas offcanvas-end" tabindex="-1" id="offcanvasRight" aria-labelledby="offcanvasRightLabel">
  <div class="offcanvas-header">
    <h5 id="offcanvasRightLabel">Display in the right sidebarh5>
    <button type="button" class="btn-close text-reset" data-bs-dismiss="offcanvas" aria-label="Close">button>
  div>
  <div class="offcanvas-body">
    ...
  div>
div>


 Example



<button class="btn btn-primary" type="button" data-bs-toggle="offcanvas" data-bs-target="#offcanvasBottom" aria-controls="offcanvasBottom">Bottom navigation barbutton>

<div class="offcanvas offcanvas-bottom" tabindex="-1" id="offcanvasBottom" aria-labelledby="offcanvasBottomLabel">
  <div class="offcanvas-header">
    <h5 class="offcanvas-title" id="offcanvasBottomLabel">Display in the bottom navigation barh5>
    <button type="button" class="btn-close text-reset" data-bs-dismiss="offcanvas" aria-label="Close">button>
  div>
  <div class="offcanvas-body small">
    ...
  div>
div>


  7.28.3.  Set the background and whether it can be scrollable

 We can set it when the sidebar pops up.      whether the element can be scrolled or whether a background canvas is displayed. Use   data-bs-scroll   property to set the      whether the element is scrollable   data-bs-backdrop   to toggle whether to display the background canvas.


 Example



<button class="btn btn-primary" type="button" data-bs-toggle="offcanvas" data-bs-target="#offcanvasScrolling" aria-controls="offcanvasScrolling">body elements can scrollbutton>
<button class="btn btn-primary" type="button" data-bs-toggle="offcanvas" data-bs-target="#offcanvasWithBackdrop" aria-controls="offcanvasWithBackdrop">Display Canvas (default)button>
<button class="btn btn-primary" type="button" data-bs-toggle="offcanvas" data-bs-target="#offcanvasWithBothOptions" aria-controls="offcanvasWithBothOptions">Allow scrolling and displaying the canvasbutton>

<div class="offcanvas offcanvas-start" data-bs-scroll="true" data-bs-backdrop="false" tabindex="-1" id="offcanvasScrolling" aria-labelledby="offcanvasScrollingLabel">
  <div class="offcanvas-header">
    <h5 class="offcanvas-title" id="offcanvasScrollingLabel">The main content can be scrolledh5>
    <button type="button" class="btn-close text-reset" data-bs-dismiss="offcanvas" aria-label="Close">button>
  div>
  <div class="offcanvas-body">
    <p>Scroll the page to see the effect.p>
  div>
div>
<div class="offcanvas offcanvas-start" tabindex="-1" id="offcanvasWithBackdrop" aria-labelledby="offcanvasWithBackdropLabel">
  <div class="offcanvas-header">
    <h5 class="offcanvas-title" id="offcanvasWithBackdropLabel">Use background canvash5>
    <button type="button" class="btn-close text-reset" data-bs-dismiss="offcanvas" aria-label="Close">button>
  div>
  <div class="offcanvas-body">
    <p>The main content cannot be scrolledp>
  div>
div>
<div class="offcanvas offcanvas-start" data-bs-scroll="true" tabindex="-1" id="offcanvasWithBothOptions" aria-labelledby="offcanvasWithBothOptionsLabel">
  <div class="offcanvas-header">
    <h5 class="offcanvas-title" id="offcanvasWithBothOptionsLabel">Use a background canvas, with scrollable body contenth5>
    <button type="button" class="btn-close text-reset" data-bs-dismiss="offcanvas" aria-label="Close">button>
  div>
  <div class="offcanvas-body">
    <p>Scroll the page to see the effect.p>
  div>
div>

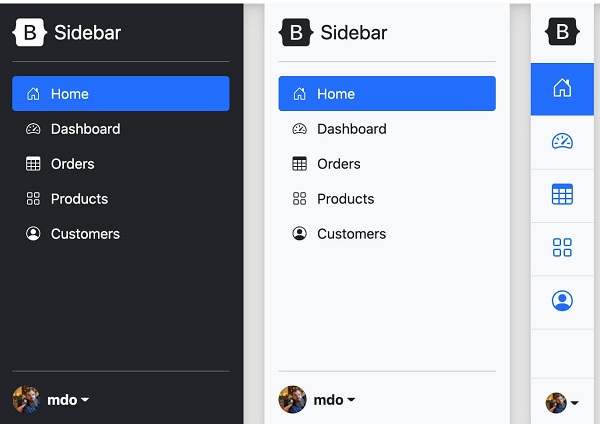

  7.28.4.  Sidebar case


 Example
