5.17. The search of binary search Tree nodes

发布时间 ： 2025-10-25 13:35:39 UTC

Page Views: 37 views

There is no subscript in the binary search tree, so for the search operation of the binary search tree, a contain method is defined to determine whether the binary search tree contains an element and returns a Boolean variable. The search operation is also a recursive process. The specific code is as follows:

...
// 查看以node为根的二分搜索树中是否包含键值为key的节点, 使用递归算法
private boolean contain(Node node, Key key){
    if( node == null )
        return false;
    if( key.compareTo(node.key) == 0 )
        return true;
    else if( key.compareTo(node.key) < 0 )
        return contain( node.left , key );
    else // key > node->key
        return contain( node.right , key );
}
...

The following example looks for 43 elements in the binary search tree

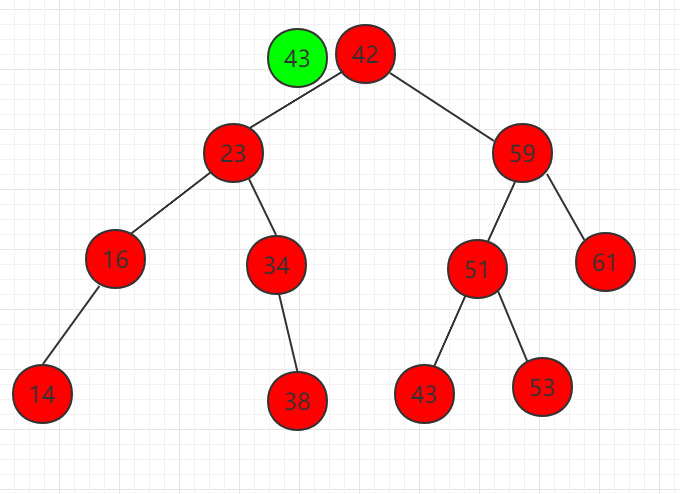

(1) Element 43 is larger than root node 42 and needs to be compared at the right child node.

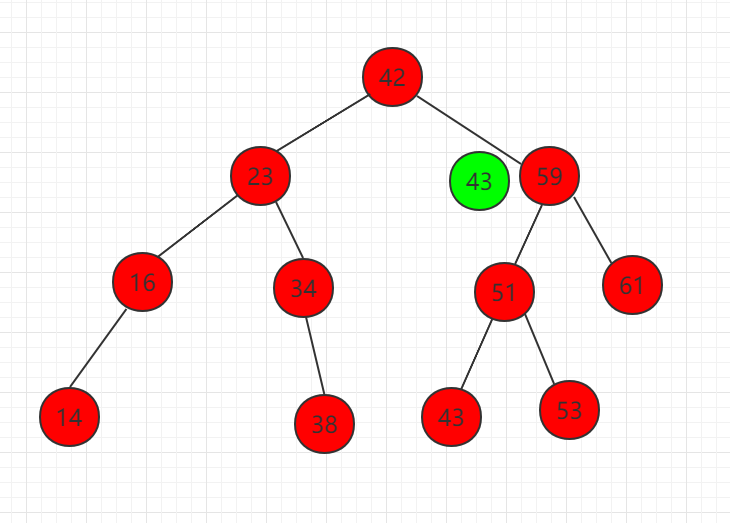

(2) Element 43 is smaller than 59 and needs to be compared in the left child node.

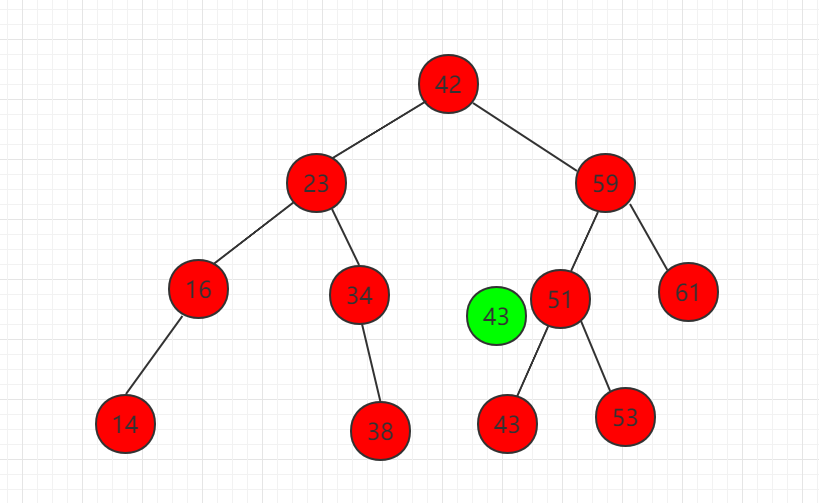

(3) Element 43 is smaller than 51 and needs to be compared in the left child node.

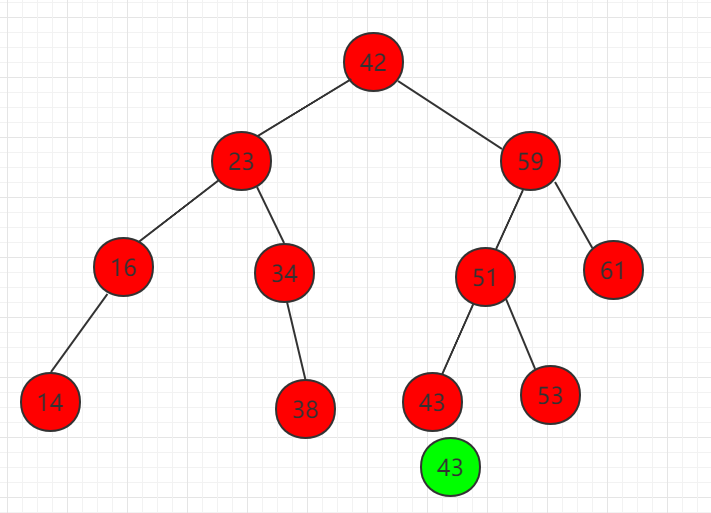

(4) Look for the left child node 43 of 51, which is exactly equal to the end.

If you need to find the value for key, the code is as follows:

...
// 在以node为根的二分搜索树中查找key所对应的value, 递归算法
// 若value不存在, 则返回NULL
private Value search(Node node, Key key){
    if( node == null )
        return null;
    if( key.compareTo(node.key) == 0 )
        return node.value;
    else if( key.compareTo(node.key) < 0 )
        return search( node.left , key );
    else // key > node->key
        return search( node.right, key );
}
...

5.17.1. Java instance code

源码包下载： Download

Src/runoob/binary/BinarySearchTreeSearch.java file code:

package runoob.binary;
/*\*
 \* 二分搜索树查找
 */
public class BinarySearchTreeSearch, Value>
{
    // 树中的节点为私有的类, 外界不需要了解二分搜索树节点的具体实现
    private class Node {
        private Key key;
        private Value value;
        private Node left, right;
        public Node(Key key, Value value) {
            this.key = key;
            this.value = value;
            left = right = null;
        }
    }
    // 根节点
    private Node root;
    // 树种的节点个数
    private int count;
    // 构造函数, 默认构造一棵空二分搜索树
    public BinarySearchTreeSearch() {
        root = null;
        count = 0;
    }
    // 返回二分搜索树的节点个数
    public int size() {
        return count;
    }
    // 返回二分搜索树是否为空
    public boolean isEmpty() {
        return count == 0;
    }
    // 向二分搜索树中插入一个新的(key, value)数据对
    public void insert(Key key, Value value){
        root = insert(root, key, value);
    }
    // 查看二分搜索树中是否存在键key
    public boolean contain(Key key){
        return contain(root, key);
    }
    // 在二分搜索树中搜索键key所对应的值。如果这个值不存在, 则返回null
    public Value search(Key key){
        return search( root , key );
    }
    //*******************\*
    //\* 二分搜索树的辅助函数
    //*******************\*
    // 向以node为根的二分搜索树中, 插入节点(key, value), 使用递归算法
    // 返回插入新节点后的二分搜索树的根
    private Node insert(Node node, Key key, Value value){
        if( node == null ){
            count ++;
            return new Node(key, value);
        }
        if( key.compareTo(node.key) == 0 )
            node.value = value;
        else if( key.compareTo(node.key) < 0 )
            node.left = insert( node.left , key, value);
        else    // key > node->key
            node.right = insert( node.right, key, value);
        return node;
    }
    // 查看以node为根的二分搜索树中是否包含键值为key的节点, 使用递归算法
    private boolean contain(Node node, Key key){
        if( node == null )
            return false;
        if( key.compareTo(node.key) == 0 )
            return true;
        else if( key.compareTo(node.key) < 0 )
            return contain( node.left , key );
        else // key > node->key
            return contain( node.right , key );
    }
    // 在以node为根的二分搜索树中查找key所对应的value, 递归算法
    // 若value不存在, 则返回NULL
    private Value search(Node node, Key key){
        if( node == null )
            return null;
        if( key.compareTo(node.key) == 0 )
            return node.value;
        else if( key.compareTo(node.key) < 0 )
            return search( node.left , key );
        else // key > node->key
            return search( node.right, key );
    }
}
