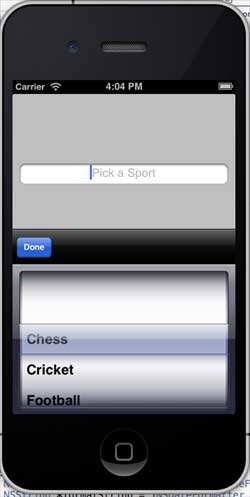

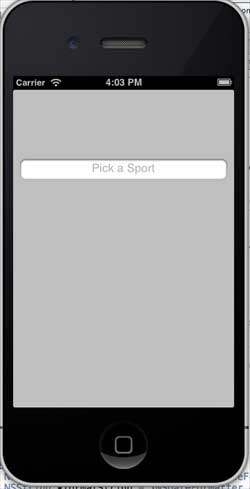

A selector is a scrollable view that selects values in a list item. Delegate DataSource We will add a text field, a selector view, and an array. 我们将采用UITextFieldDelegate、UIPickerViewDataSource、UIPickerViewDelegate的协议。ViewController.h文件代码如下所示： Modify the viewDidLoad in ViewController.m as follows: Now when we run the application, we will see the following output: The text selector view is shown below, and we can choose the value we need: 9.23.1. Important attribute ¶
An important method ¶
- (void)reloadAllComponents
- (void)reloadComponent:(NSInteger)component
- (NSInteger)selectedRowInComponent:(NSInteger)component
- (void)selectRow:(NSInteger)row inComponent:(NSInteger)component animated:(BOOL)animated
9.23.2. Modify ViewController.h ¶
#import Add a custom method addPickerView ¶
-(void)addPickerView{ pickerArray = [[NSArray alloc]initWithObjects:@"Chess", @"Cricket",@"Football",@"Tennis",@"Volleyball", nil]; myTextField = [[UITextField alloc]initWithFrame: CGRectMake(10, 100, 300, 30)]; myTextField.borderStyle = UITextBorderStyleRoundedRect; myTextField.textAlignment = UITextAlignmentCenter; myTextField.delegate = self; [self.view addSubview:myTextField]; [myTextField setPlaceholder:@"Pick a Sport"]; myPickerView = [[UIPickerView alloc]init]; myPickerView.dataSource = self; myPickerView.delegate = self; myPickerView.showsSelectionIndicator = YES; UIBarButtonItem *doneButton = [[UIBarButtonItem alloc] initWithTitle:@"Done" style:UIBarButtonItemStyleDone target:self action:@selector(done:)]; UIToolbar *toolBar = [[UIToolbar alloc]initWithFrame: CGRectMake(0, self.view.frame.size.height- myPickerView.frame.size.height-50, 320, 50)]; [toolBar setBarStyle:UIBarStyleBlackOpaque]; NSArray *toolbarItems = [NSArray arrayWithObjects: doneButton, nil]; [toolBar setItems:toolbarItems]; myTextField.inputView = myPickerView; myTextField.inputAccessoryView = toolBar; }
Perform the delegate, as follows: ¶
#pragma mark - Text field delegates -(void)textFieldDidBeginEditing:(UITextField *)textField{ if ([textField.text isEqualToString:@""]) { [self dateChanged:nil]; } } #pragma mark - Picker View Data source -(NSInteger)numberOfComponentsInPickerView:(UIPickerView *)pickerView{ return 1; } -(NSInteger)pickerView:(UIPickerView *)pickerView numberOfRowsInComponent:(NSInteger)component{ return [pickerArray count]; } #pragma mark- Picker View Delegate -(void)pickerView:(UIPickerView *)pickerView didSelectRow: (NSInteger)row inComponent:(NSInteger)component{ [myTextField setText:[pickerArray objectAtIndex:row]]; } - (NSString *)pickerView:(UIPickerView *)pickerView titleForRow: (NSInteger)row forComponent:(NSInteger)component{ return [pickerArray objectAtIndex:row]; }
(void)viewDidLoad { [super viewDidLoad]; [self addPickerView]; }
9.23.3. Output ¶
